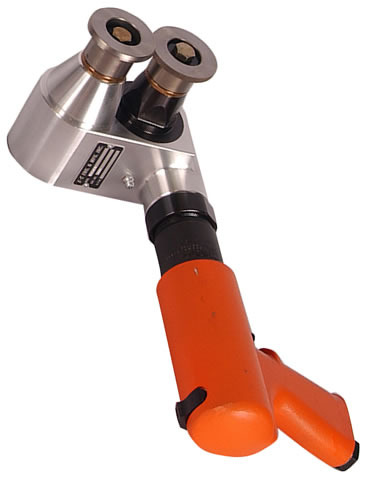

EC-9 Trim Shear Features

  • Powerful, pistol grip reversible motor
  • Does not build up heat on lengthy cuts
  • Designed for long straight or contour cutting in mild steel, alloy steel, stainless, titanium, inconel, and similar material
  • Designed to be hand operated, but can be pedestal or bench mounted for stationary work
  • Feed and roll cutters manufactured from special tool steel, hardened and ground for long life

EC-9 Trim Shear Models and Specifications

EC-9 PR *

  • Mild Steel Capacity – 10 Gauge
  • Feed – Approximately 3 1/2 feet/minute
  • Throat Capacity – 2 1/2 inches
  • Weight – 12 1/2 pounds
  • Length – 11 5/8 inches
  • Height – 5 5/8 inches
  • Width – 5 inches
  • Minimum Hose Size – 3/8 inch

* P = Pistol Grip Motor    R = Reversible Motor

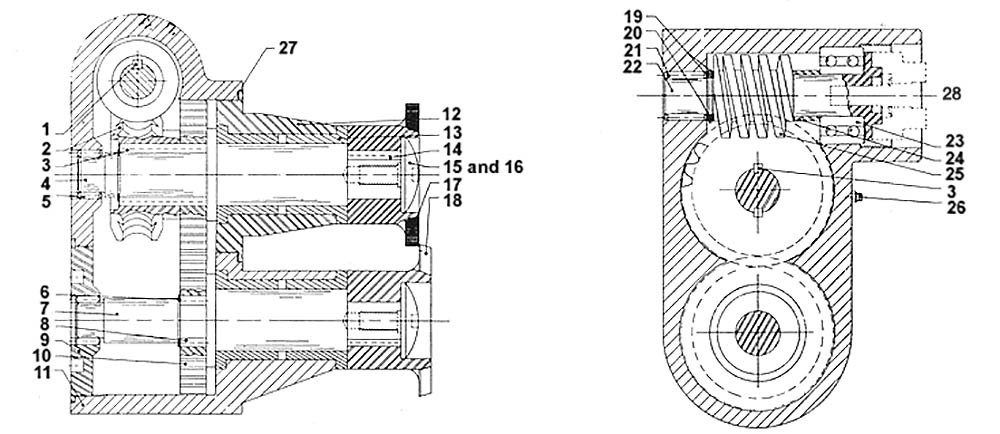

EC-9 Product Illustration

Click diagram to enlarge


EC-9 Trim Shear Parts List

Index, Part #, Description, Quantity

1 - EC 9211 Worm Key, 1
2 - EC 9289 Worm Wheel, 1
3 - EC 9284 Worm Wheel Key, 2
4 - EC 9277 Feed Cutter Shaft, 1
5 - EC 9308 Shaft Needle Bearing, 2
6 - EC 2232 Retainer Ring, 2
7 - EC 9278 Roll Cutter Shaft, 1
8 - EC 9240 Cutter Shaft Key, 2
9 - EC 9281 Rear Cover, 1
10 - EC 9272 Spur Gear, 2
11 - EC 9275 Housing, 1
12 - EC 9282 Front Cover, 1
13 - EC 9287 Shaft Bushing, 4
14 - EC 9285 Feed & Roll Cutter Key, 2
15 - EC 9288 Cap Screw, 2
16 - EC 9283 Washer, 2
17 - EC 9280 Feed Cutter, 1
18 - EC 9279 Roll Cutter, 1
19 - EC 3791 Worm Retainer Ring, 2
20 - EC 9217 Worm Retainer Ring Spacer, 1
21 - EC 9307 Drive Shaft Needle Bearing, 1
22 - EC 9276 Drive Shaft **, 1
23 - EC 9309 Drive Shaft Bearing, 1
24 - EC 9290 Worm Spacer, 1
25 - EC 9350 Worm, 1
26 - EC 3312 Grease Fitting, 1
27 - EC 9353 Feed Cutter Shim (0.002 inch), *
27 - EC 9354 Feed Cutter Shim (0.003 inch), *
27 - EC 9355 Feed Cutter Shim (0.005 inch), *
28 - EC 9400 Adapter, 1

* Number of Shims required is variable
** Available in Dog Drive as a replacement part only - order EC 9276D


EC-9 Trim Shear Service & Maintenance Instructions

Operation:

The tool is designed to operate on 90 PSI air pressure using a 3/8 inch hose up to 8 feet in length. If additional hose is required, a 1/2 inch or larger hose should be connected to the 3/8 inch hose.

Lubrication:

An automatic in-line filter lubricator is highly recommended to increase tool life as well as keeping the tool in sustained operation. If in-line lubricator is not used, the tool should be lubricated several times daily by disconnecting the air hose and injecting a few drops of a high grade No. 10W machine oil in the air inlet.


Product Safety Warnings

For your safety, make sure you apply standard shop practices at all times when using this tool. Your failure to apply these practices may result in serious bodily injury.

Protect your eyes, ears, and other parts of your body by using safety equipment - respirator, safety goggles, ear mufflers and other necessary safety devices - at all times when operating this tool or when you are in the area where this tool is being operated.

For maximum stability and safety, only operate these tools with both hands on the tool. Follow the cutting tool manufacturer’s mounting and operating instructions and avoid any direct contact with the sharp cutting edges of the tool.

Modification or improper use of this tool, including, but not limited to, removing guards, mufflers, or other safety devices, voids all responsibilities of the manufacturer.

Excessive air pressure, over and above 90 PSI, will increase the RPM, the sound level, and can be a damaging factor to both the operator and the tool.

Stay alert! Watch what you are doing! Do not operates this tool when under the influence of medication, alcohol, or drugs!

Disconnect the air supply before changing the cutter and whenever making adjustments or repairs.

Do not remove warning tags until both sides have been read and understood by the person(s) responsible for safety in your plant.
