When changing Collet size: Order corresponding Nose, Bearing, and Retaining Ring. See below.
EC 8703 Collet
EC 2206 Nose
EC 9015 Ball Bearing
EC 9016 Retaining Ring
Nose Thread 1/2-20
EC 8705 Collet
EC 2207 Nose
EC 9019 Ball Bearing
EC 9017 Retaining Ring
Nose Thread 5/8-18

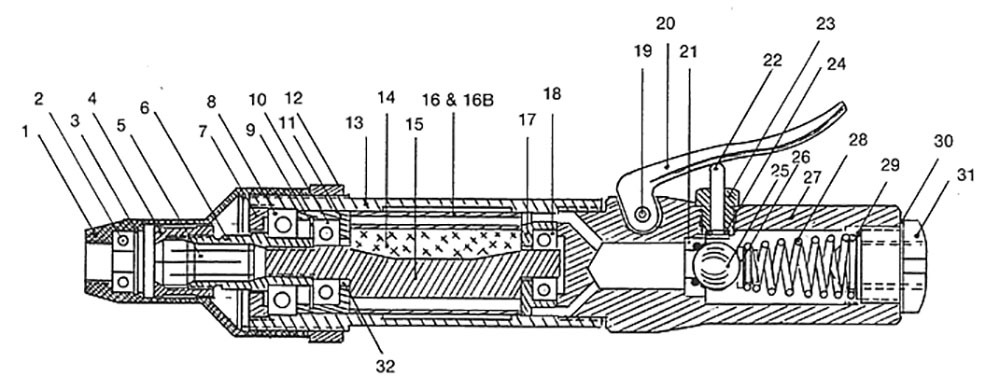

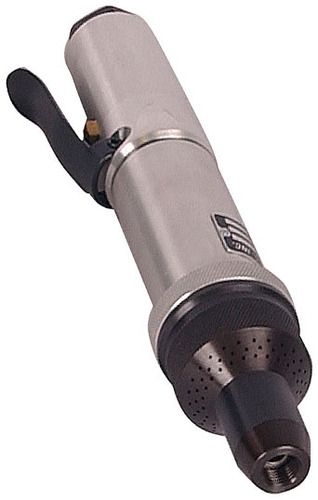

EC-250 Router Service & Maintenance Instructions
The tool is designed to operate on 90 PSI air pressure using a 3/8 inch hose up to 8 feet in length. If additional hose is required, a 1/2 inch or larger hose should be connected to the 3/8 inch hose.
An automatic in-line filter lubricator is highly recommended to increase tool life as well as keeping the tool in sustained operation. If in-line lubricator is not used, the tool should be lubricated several times daily by disconnecting the air hose and injecting a few drops of a high grade No. 10W machine oil in the air inlet.
Remove Nose Assembly: Clamp the throttle body in a vise with the tool in a vertical position and remove Nose Assembly using a suitable spanner wrench.
Remove Motor Housing: Unscrew (right hand threads) the bearing retainer. The motor housing may now be unscrewed from the throttle body with the aid of a strap wrench, if necessary.
Change Rotor Blades: If the reason for disassembling the tool is to change the rotor blades, use a 1/4 or 5/8 inch brass or aluminum rod and remove the rear bearing and rear bearing plate from the rotor. By sliding cylinder off the rotor, the rotor blades can now be replaced.
Remove Collet Spindle: To remove the collet spindle or either of the bearings, insert a 3/16 inch allen wrench into the opening of the collet spindle and unscrew the collet spindle from the rotor. Now the bearings can be removed from the rotor.
Product Safety Warnings
For your safety, make sure you apply standard shop practices at all times when using this tool. Your failure to apply these practices may result in serious bodily injury.
Protect your eyes, ears, and other parts of your body by using safety equipment - respirator, safety goggles, ear mufflers and other necessary safety devices - at all times when operating this tool or when you are in the area where this tool is being operated.
For maximum stability and safety, only operate these tools with both hands on the tool. Follow the cutting tool manufacturer’s mounting and operating instructions and avoid any direct contact with the sharp cutting edges of the tool.
Modification or improper use of this tool, including, but not limited to, removing guards, mufflers, or other safety devices, voids all responsibilities of the manufacturer.
Excessive air pressure, over and above 90 PSI, will increase the RPM, the sound level, and can be a damaging factor to both the operator and the tool.
Stay alert! Watch what you are doing! Do not operates this tool when under the influence of medication, alcohol, or drugs!
Disconnect the air supply before changing the cutter and whenever making adjustments or repairs.
Do not remove warning tags until both sides have been read and understood by the person(s) responsible for safety in your plant.
If you need any other information, consult your supervisor or contact:
EC Eng. & Mfg., Inc. P.O. Box 1090 Mountain Home, AR 72654-1090 Phone: (870) 425-3979 Fax: (870) 424-2228 Email: firstname.lastname@example.org
